Indoor/Outdoor 1 2 4 6 8 16 24 Cores/Ports ABS Fdb Nap SMC FTTH Ftta Wall Mount Splitter Mini Plastic Box Fiber Optic/Optical Cable Distribution Terminal Box

24 Cores ABS Fiber Optic Distribution Terminal Box - Factory direct, high quality indoor/outdoor splitter for FTTH/FTTA network. Buy now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Fiber Optic Cable Distribution Terminal Box
Condition
New
Model Number
FTTH Box
Installation Type
Wall Mountable
Pigtail Diameter
0.9mm/2.0mm
Connector
Sc/St/FC/LC
Fiber Type
G652D/G657A1/G657A2/Om1/Om2 for Option
Cores
1~24 Fibes
Material
ABS+PC
Application
FTTH FTTB FTTX Network
Transport Package
Individual Box or According to Customer′s Request
Specification
RoHS, ISO9001
Trademark
DYS or OEM
Origin
Guangdong, China (Mainland)
HS Code
8517622990
Production Capacity
50000/Day

Product Description

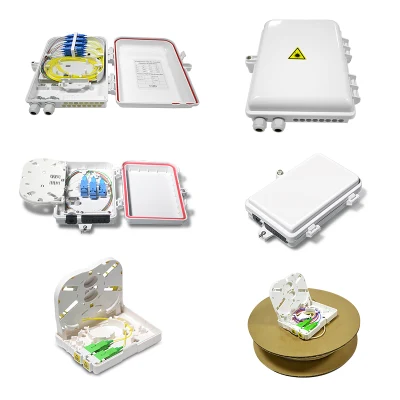

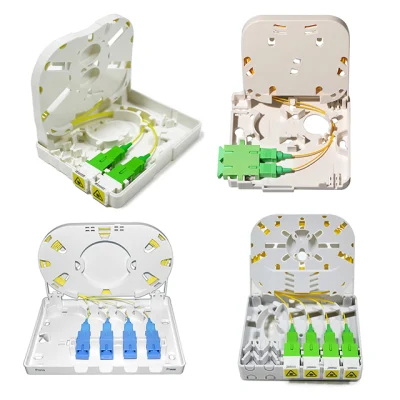

Indoor/Outdoor 1 2 4 6 8 16 24 Cores/Ports ABS Fdb Nap SMC FTTH Solution Wall Mount Splitter Mini Plastic Box Fiber Optic/Optical Terminal Box





Fiber to the home (FTTH) infrastructures make network organizers adopt powerful management and planning systems, FTTH termination box is a small part of this system and provides a cost-effective solution for FTTH applications.

FTTH Termination Box available for the distribution and terminal connection for various kinds of optical fiber system, Some are used for indoor cabling and others are designed to install on outdoor pole or wall mount use.They are of light and compact design, Mainly used in fiber optic drop cable, pigtails or splitters cablings in residential buildings area. Most of them are applied to wall mounted type. The capacity is optional, such as small single fiber distribution box, 2 ports, 4 ports, 6 ports, 8 ports, 12 ports, 16 ports, 24 ports or even high density fiber distribution requirements.

APPLICATION
Fiber to the home(FTTH)
Fiber to the building(FTTB)
Local area networks
Wide area networks

FEATURES
Small size and light weight for easy installation compact body.
Easy installations: Ready for wall mount - installation kits provided.
Lower layer for splicing .
Upper layer for cross-connecting and fiber distribution.
Fully stable adapter panel, no risk of movement.
Fiber can get in from bottom or side

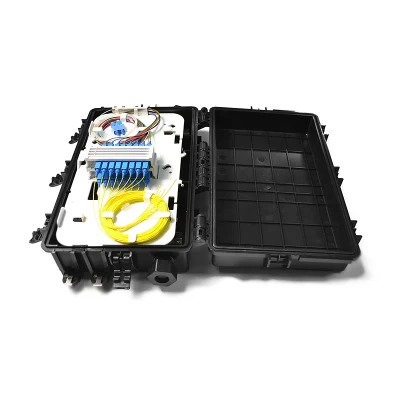

Indoor/Outdoor 1 2 4 6 8 16 24 Cores/Ports ABS Fdb Nap SMC FTTH Ftta Wall Mount Splitter Mini Plastic Box Fiber Optic/Optical Cable Distribution Terminal Box

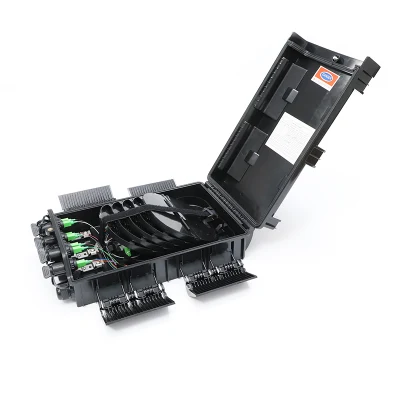

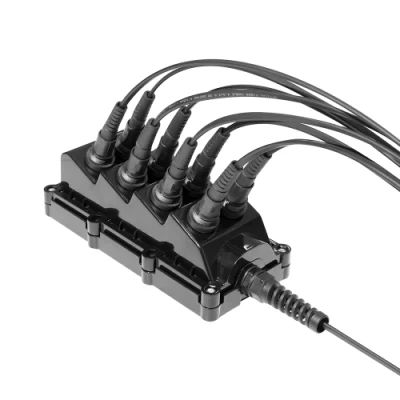

FTTX Enclosure
FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.

Applications
FTTH field
FTTA field
Trunk cable connecting
Prospecting or military communication

Features
High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
Factory-sealed or field assembly.
IP68 water and dust protection
Strong enough: working under 1200N pulling force long term.
From 2 to 12 ports for single or multifiber harsh connectors.
Available with PLC or splice sleeve for fiber divide .
IP68 waterproof rating.
Wall-mounting, aerial installation or holding pole installation.
Decreased angle surface and height make sure no connector interfering when operating.
Meet IEC 61753-1 standard.
Cost effective: save 40% operating time.

Product Parameters
Dimensions(LxWxH) 200x120x85mm(4Core) 280x120x85mm(8Core)
Ingress Protection IP68
Working Temperature -40~85ºC
Cable Strength Member Armoured or Non-armoured
Cable Type Hybrid or non-hybrid
Round Cable OD 5.0mm to 14.0mm
Flat Cable Dimension 4.6x8.9mm
Cable Jacket Material LSZH,PE or TPU
Bending Radius 20D
Cable Crush Resistance 200N/cm long term
Tensile Strength 1200N long term
UV Resistance ISO 4892-3
Fire Protection Rating UL94-V0
Number of PLC 1to 2pcs
Number of Fusion Protection Steeve 1to 24pcs

Configuration
  Standard Optional
Input Hole PG13.5 MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
Output Hole MINI SC,H connector MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
Extend Hole Closed MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized



Indoor/Outdoor 1 2 4 6 8 16 24 Cores/Ports ABS Fdb Nap SMC FTTH Ftta Wall Mount Splitter Mini Plastic Box Fiber Optic/Optical Cable Distribution Terminal Box
Indoor/Outdoor 1 2 4 6 8 16 24 Cores/Ports ABS Fdb Nap SMC FTTH Ftta Wall Mount Splitter Mini Plastic Box Fiber Optic/Optical Cable Distribution Terminal Box Indoor/Outdoor 1 2 4 6 8 16 24 Cores/Ports ABS Fdb Nap SMC FTTH Ftta Wall Mount Splitter Mini Plastic Box Fiber Optic/Optical Cable Distribution Terminal Box Indoor/Outdoor 1 2 4 6 8 16 24 Cores/Ports ABS Fdb Nap SMC FTTH Ftta Wall Mount Splitter Mini Plastic Box Fiber Optic/Optical Cable Distribution Terminal Box Indoor/Outdoor 1 2 4 6 8 16 24 Cores/Ports ABS Fdb Nap SMC FTTH Ftta Wall Mount Splitter Mini Plastic Box Fiber Optic/Optical Cable Distribution Terminal Box
